Loki, centralization of logs using the Prometheus way

Update helm installation instructions (04/05/2021).

This article is the translation of an original article of mine written in French. You can find the original article using the following link: https://linuxfr.org/news/loki-centralisation-de-logs-a-la-sauce-prometheus

This article is a quick introduction to Loki. This project is supported by Grafana and aims to centralize activity logs (servers or containers).

The main source of inspiration for Loki comes from Prometheus, with the idea of applying it to log management, the aim being to have the same mechanism:

  • use of labels for data storage
  • claim very few resources for its execution

In what follows, we will return to the operating principle of Prometheus and give some examples of use in the context of Kubernetes.

A word about Prometheus

The characteristic of this product is to retrieve metrics from collection points (using exporter) and store them in a TSDB (Time Series Data Base) by adding metadata in the form of labels.

Origin of need

Unfortunately, on the side of logs, there is still no turnkey method and the user must find his own solution:

  • a managed centralized log service in the cloud (AWS, Azure, or Google)
  • a monitoring service “monitoring as a service” (Datadog type)
  • setting up a centralization service.

At the level of the third solution, I traditionally used to set up Elasticsearch engine — even if i have a set of reservations about it (especially its heaviness and the difficulty of its implementation).

Loki has been designed with the aim of simplifying this implementation by meeting the following criteria:

  • be a simple product to start
  • consume few resources
  • operate alone without any special maintenance intervention
  • to support the investigation in addition to Prometheus in case of bug

However, this lightness is at the price of some compromises. One of them is to not index the content. The search for text is therefore not very efficient or rich in this respect and does not allow statistics to be made on the content of the text. But since Loki wants to be an equivalent of grep and must serve as a complement to Prometheus, this defect is not one.

Incident Resolution Method

1 Alert → 2 Dashboard → 3 Adhoc Query → 4 Log Aggregation → 5 Distributed Tracing → 6 Fix!

Incident Resolution Method

  • consulting Grafana dashboards
  • look up raw metrics (in Prometheus, for example)
  • consultation of logs entries (Elasticsearch, for example)
  • possibly, consultation of the distributed traces (Jaeger, Zipkin, etc.)
  • finally, correction of the original problem.

Here, in the case of Grafana + Prometheus + Elasticsearch + Zipkin stack, the user will need to change tools four times. In order to reduce intervention times, the idea is to do everything with one tool: Grafana. It should be noted that Grafana has been proposing this notion of exploration since version 6. It thus becomes possible to consult Raw data from Prometheus directly from Grafana.

Explorer screen splitted between Prometheus and Loki source

From this screen, it is possible to consult the Loki logs associated with Prometheus metrics, in particular by using the concept of cutting the screen. Since 6.5, Grafana allow to handle trace id in Loki log entries and let you follow links to go to your favorite distributed tracing tools (Jaeger).

Local Loki test

$ git clone https://github.com/grafana/loki.git

Then you have to go to the production directory:

$ cd production

From here it is possible to get the latest version of Docker images:

$ docker-compose pull

Finally, the Loki stack starts with the following command:

$ docker-compose up

Loki Architecture

Loki architecture principles

A Web client runs applications on the server, Promtail collects the logs it sends to Loki, the Web client also sends metadata to Loki. Loki aggregates everything. Then data can be transmited to Grafana.

Loki is started. To view the components present, run the following command:

$ docker ps

In the case of a freshly installed Docker daemon, the command must then return the following output:

IMAGE               PORTS                  NAMES
grafana/promtail: production_promtail_1
grafana/grafana: m 0.0.0.0:3000->3000/tcp production_grafana_1
grafana/loki: late 80/tcp,0.0.0.0:3100... production_loki_1

We find the following bricks:

  • Promtail: an agent that supports log centralization (Promtail, for Tailing logs in Prometheus format)
  • Grafana: the famous data layout tool
  • Loki: the data centralization daemon

As part of a classic infrastructure installation (based on virtual machines for example), the Promtail agent must be deployed on each machine. Grafana and Loki can possibly be installed on the same machine.

Deployment in Kubernetes

  • a daemonSet to deploy the Promtail Agent on each machine in the server cluster
  • a deployment (Deployment) to deploy the Loki part
  • and a last deployment for Grafana.

Fortunately, Loki is available as a Helm package to simplify its deployment.

Helm installation

Note: Version 3.0.0 of Helm has just been released. Since it changes a lot, the reader is advised to wait a bit before getting started.

Adding the Helm source

$ helm repo add grafana https://grafana.github.io/helm-charts

Once this command is launched, it becomes possible to search for packages with the name “loki”:

$ helm search repo loki

Below is an example of returned result:

grafana/loki       2.5.0 v2.2.0 Loki: like Prometheus, but for logs.
...
grafana/loki-stack 2.3.1 v2.1.0 Loki: like Prometheus, but for logs.

These packages have different functions:

  • the grafana/loki package corresponds to the Loki server alone
  • the grafana/loki-stack package allowing you to deploy Loki and Promtail in one go.

Deploying Loki

$ helm upgrade --install loki grafana/loki-stack \
--namespace monitoring

To have persistent disk space, add the option --set loki.persistence.enabled=true:

$ helm upgrade --install loki grafana/loki-stack \
--namespace monitoring \
--set loki.persistence.enabled=true

Note: in case you want to deploy Grafana at the same time, add the option --set grafana.enabled=true

When launching this command, the user should get the following output:

LAST DEPLOYED: Tue Nov 19 15:56:54 2019
NAMESPACE: monitoring
STATUS: DEPLOYED
RESOURCES:
==> v1/ClusterRole
NAME AGE
loki-promtail-clusterrole 189d
NOTES:
The Loki stack has been deployed to your cluster. Loki can now be added as a datasource in Grafana.
See http://docs.grafana.org/features/datasources/loki/ for more details.

A glance at the status of pods in the “monitoring” namespace will tell us everything is deployed:

$ kubectl -n monitoring get pods -l release=loki

Below is an example of returned results:

NAME                 READY  STATUS   RESTARTS  AGE
loki-0 1/1 Running 0 147m
loki-promtail-9zjvc 1/1 Running 0 3h25m
loki-promtail-f6brf 1/1 Running 0 11h
loki-promtail-hdcj7 1/1 Running 0 3h23m
loki-promtail-jbqhc 1/1 Running 0 11h
loki-promtail-mj642 1/1 Running 0 62m
loki-promtail-nm64g 1/1 Running 0 24m

All pods are started. Now it’s time to do some tests!

Connection to Grafana

$ kubectl -n monitoring port-forward svc/loki-grafana 3000:80

Another important point is the need to recover the password of the administrator of Grafana. The latter is stored in the loki-grafana secret in the .data.admin-user field in the base64 format.

To recover it, run the following command:

$ kubectl -n monitoring get secret loki-grafana \
--template '{{index .data "admin-password" | base64decode}}'; echo

Use this password in conjunction with the default admin account (admin).

Definition of the Loki data source from Grafana

Here is an example of a valid definition:

Example of setting the data source to Loki

Clicking on the Test button will ensure that communication with Loki is going well.

Querying the Loki engine

Thus, to select the promtail container logs, the request to enter will be as follows: {container_name="promtail"}.

Also remember to select the Loki data source.

This query will then return the activity of these containers in the following form:

Result query in Grafana

Inclusion in a dashboard

Below is an example of a dashboard realizing this mixture:

Sample dashboard with Prometheus metrics and logs from Loki

Loki’s future

I started using it from version 0.1 and it must be admitted that at the time stability was not there yet. Overall, version 0.3 brought real signs of maturity and the following versions (0.4, then 1.0) only reinforced this impression.

From now on, with version 1.0.0, no one should have any excuse for not using this great tool.

The most interesting works should no longer take place on Loki but more on integration with the excellent Grafana. Indeed, version 6.4 of Grafana has brought good integration with the dashboards.

Version 6.5, which has just been released, further improves this integration by automatically converting the content of the log line when it is in JSON format.

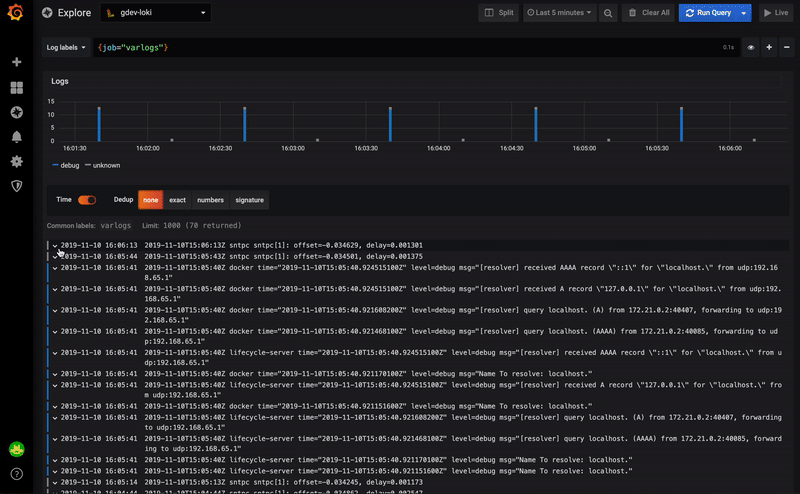

Below a small video presenting this mechanism:

Using the new Loki lines displayed in Grafana

It also becomes possible to use one of the fields of the JSON structure for example:

  • point to an external tool
  • filter the contents of the logs

You can then click on the traceId field to point to a Zipkin or Jaeger dashboard.

Sysadmin for many years in France, I’m working at AIOS (http://aios.sh). I’m a big fan of Prometheus, Kubernetes and Ansible.
